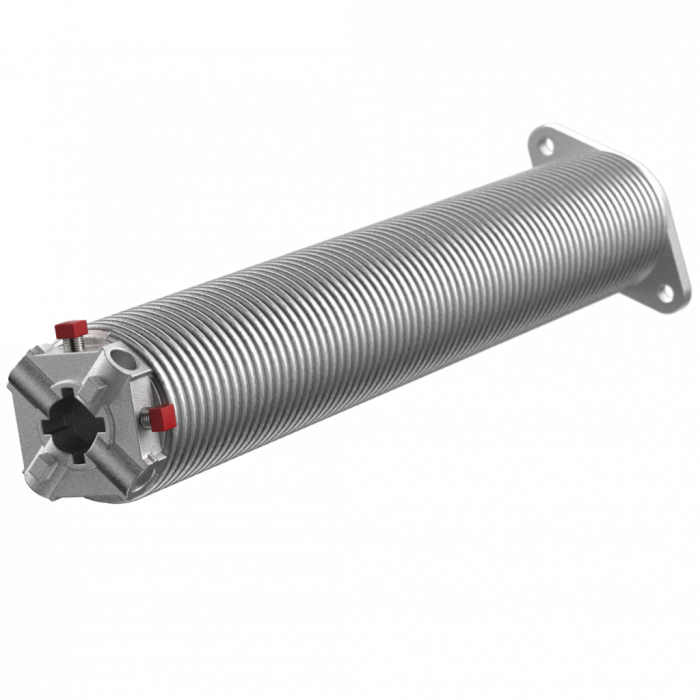

Assembled spring 2p 1" powder coated grey 67x6,25x773 mm RHW
Item No.:
SG4214R-0773
Description
Pre-assembled torsion spring with 2 plugs (2P) for 1" shaft. After coiling, the springs are annealed in an oven, then treated in an advanced shot-blasting installation, thermally heat-treated and powdercoated as a corrosion protection on the outside and provided with a wax film on the inside. The material specifications contribute to the extension of the service of the lifespan and increase the load capacity.
Product attributes
Item No. | SG4214R-0773 |
Residential / Industrial | IND & RES |
ERA-IND / ERA-RES | ERA-RES |
Length | 773 mm |
Finish | Powder-coated |
Color | Grey |
Winding direction | RHW |
Inside Diamter | 67 mm |
Spring wire thickness | 6,25 mm |
Weight | 6.82 kg |
