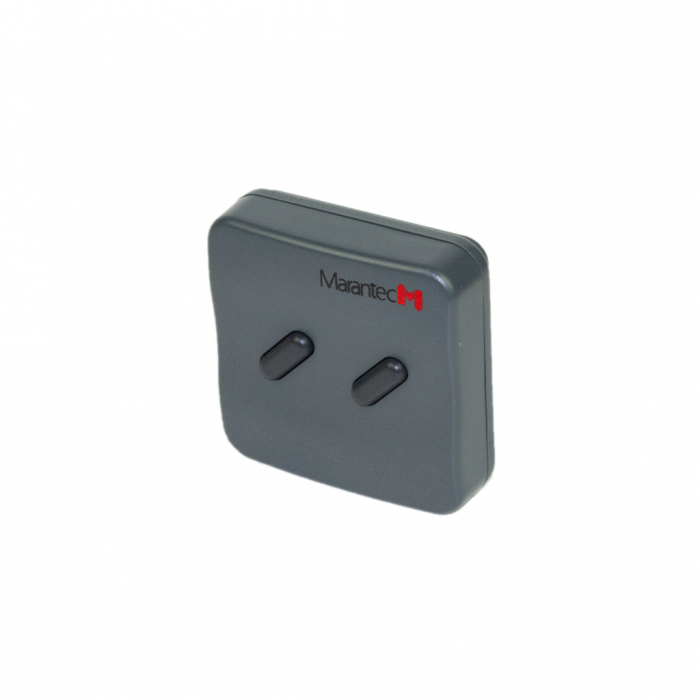

High-Line MA Wireless wall switch 2-channel
Item No.:
5590
Description
The High-Line Marantec wireless wall switch is a convenient control unit for older Marantec operators 10 / 15. Operating on a secure 868 MHz frequency, it features two individually programmable function keys for flexible use. The switch uses multi-bit technology to ensure safe and reliable one-way communication between the transmitter and receivers. It includes everything needed for setup: two batteries, a coding cable, and mounting materials. An LED indicator provides visual eedback, and external pushbuttons can be connected for direct switching. Copying functions from one transmitter to another is quick and easy using plug-in contacts.
Product attributes
| Item No. | 5590 |
| Transmitter Protocol | Marantec Bi-Linked |
| Residential / Industrial | Residential |
| Length | 80 mm |
| Width | 27 mm |
| Height | 80 mm |
| Product type | Wireless code switches |
| Operator type | High-Line MA |
| Channel Amount | 2 |
| Battery Type | CR 2032 |
| Frequency | 868 Mhz |
| IP rating | IP 20 |
| Weight | 0.05 kg |
